Air-suspension tipper
4 Axle Rear Dump Semi Trailer with Air Suspension, 100 Ton Class
This 4 axle rear dump semi trailer pairs a 9,640 mm high-sided body with air suspension on all four axles. A front hydraulic cylinder tips the body to unload sand, gravel, coal and other loose bulk through the rear gate.
- المحاور
- 4 x 16 t, air suspension
- Body (inside)
- 9,640 x 2,300 x 1,900 mm
- الطول الإجمالي
- 10,800 mm
- Unloading
- Hydraulic rear tipping
Price: factory-direct, quote on inquiry
الضمان: 2 سنة
Body and payload sized to your cargo
وصف المنتج
High-Sided Body on Four Air-Suspended Axles
The steel body is 9,640 mm long, 2,300 mm wide and 1,900 mm deep inside. A 214 x 7,300 hydraulic cylinder at the front raises it and the load runs out through the hinged rear gate. Four 16 t axles, 1,310 mm apart, sit on air springs that even out axle loads as the trailer goes from empty to full and cut road shock to the chassis. The 100 ton class is the upper end of this configuration; the payload you can run is rated per order from cargo density, tractor, axle and tyre ratings and the weight limits on your route.
-
القلب الخلفي
-
نظام التعليق الهوائي
-
Sized to your cargo
| النوع | 4 axle rear dump (end dump) semi trailer |
| Overall size (L x W x H) | 10,800 x 2,500 x 3,950 mm |
| Internal body (L x W x H) | 9,640 x 2,300 x 1,900 mm |
| Body | High-sided rectangular steel dump body |
| المحاور | 4 x 16 t (CHENLU 16T x 1840) |
| تباعد المحاور | 1,310 + 1,310 + 1,310 mm |
| التعليق | نظام التعليق الهوائي |
| Tyres | 13R22.5 |
| Hydraulic cylinder | 214 x 7,300, front-mounted |
| Rear discharge | Hinged rear gate |
| قاعدة الهبوط | Two-leg |
| صندوق الأدوات | One 600 x 600 mm |
| الحماية الجانبية | Left-side guard rail |
| الحمولة | Rated per order, up to 100 t class where limits allow |
| الضمان | 2 years |
Body and tipping
High-Sided Body and Rear Discharge
The body, cylinder and rear gate handle loading and unloading.

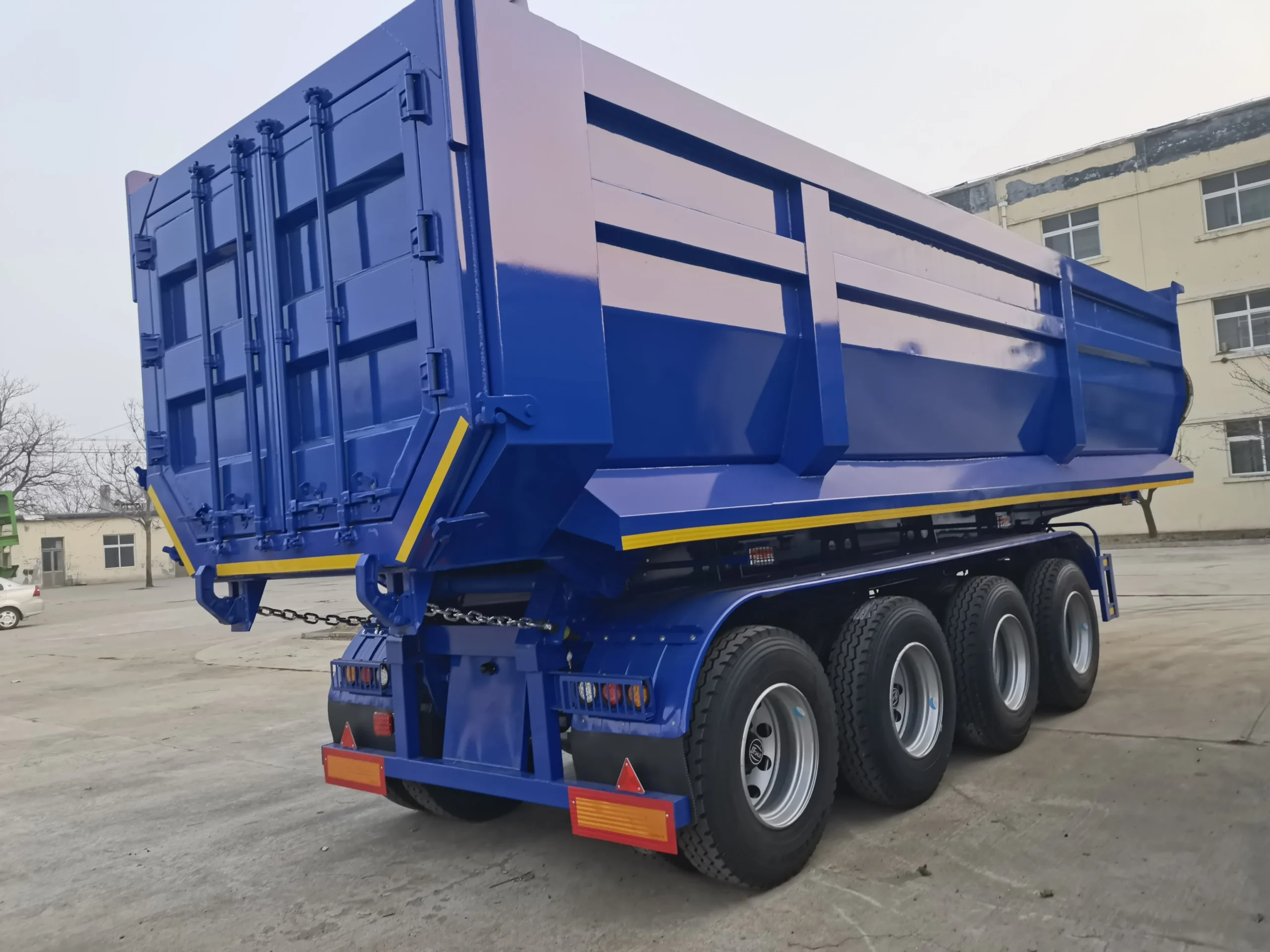

Hinged rear gate
The body tips back and the load runs out through the hinged rear gate.
Front hydraulic cylinder
A 214 x 7,300 cylinder mounted at the front lifts the body for rear tipping.
نظام الدفع
Air Suspension and Chassis Equipment
Four axles at 1,310 mm centres on air springs.

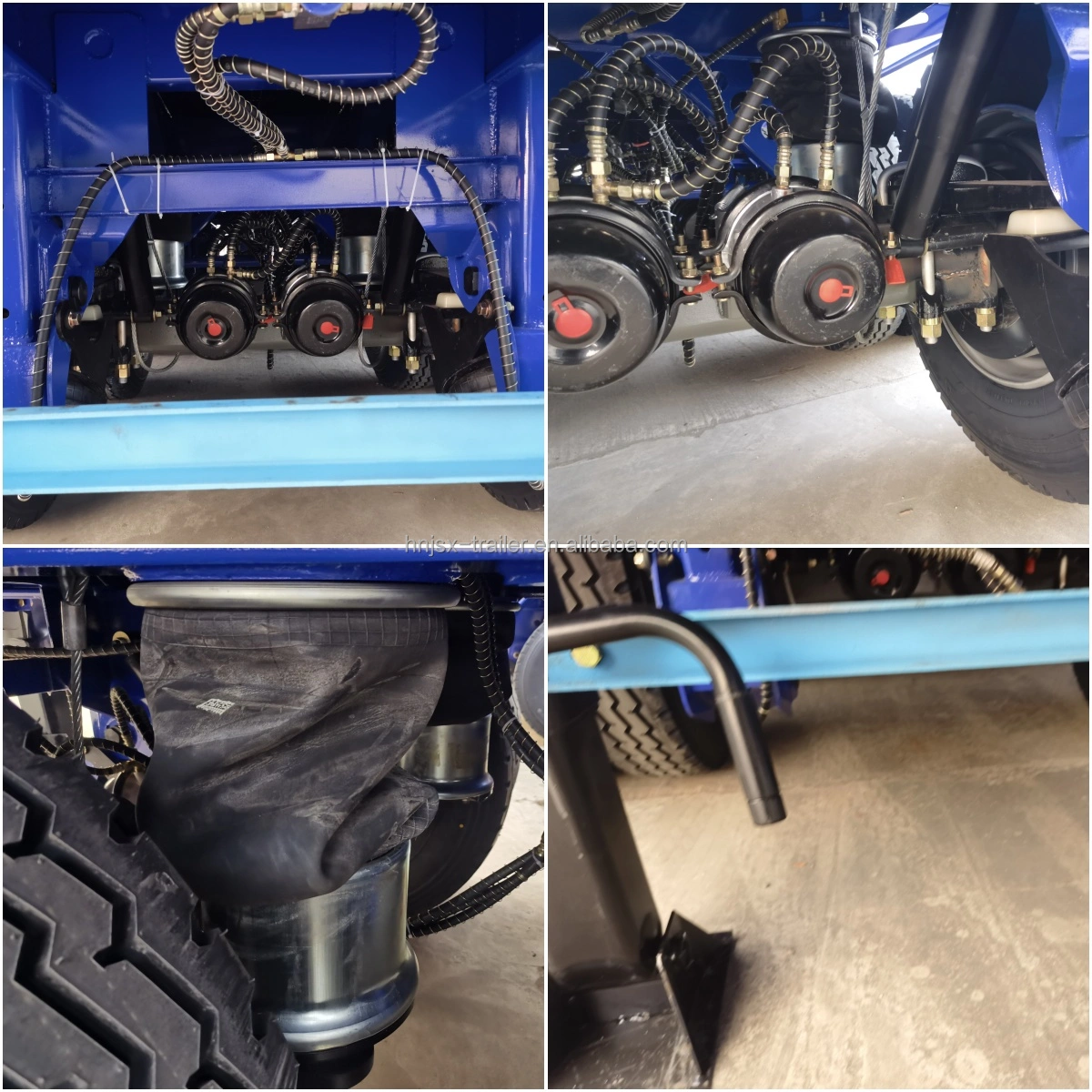

Air springs on four axles
Air springs respond to loaded and empty running and help equalise load across the axle group.

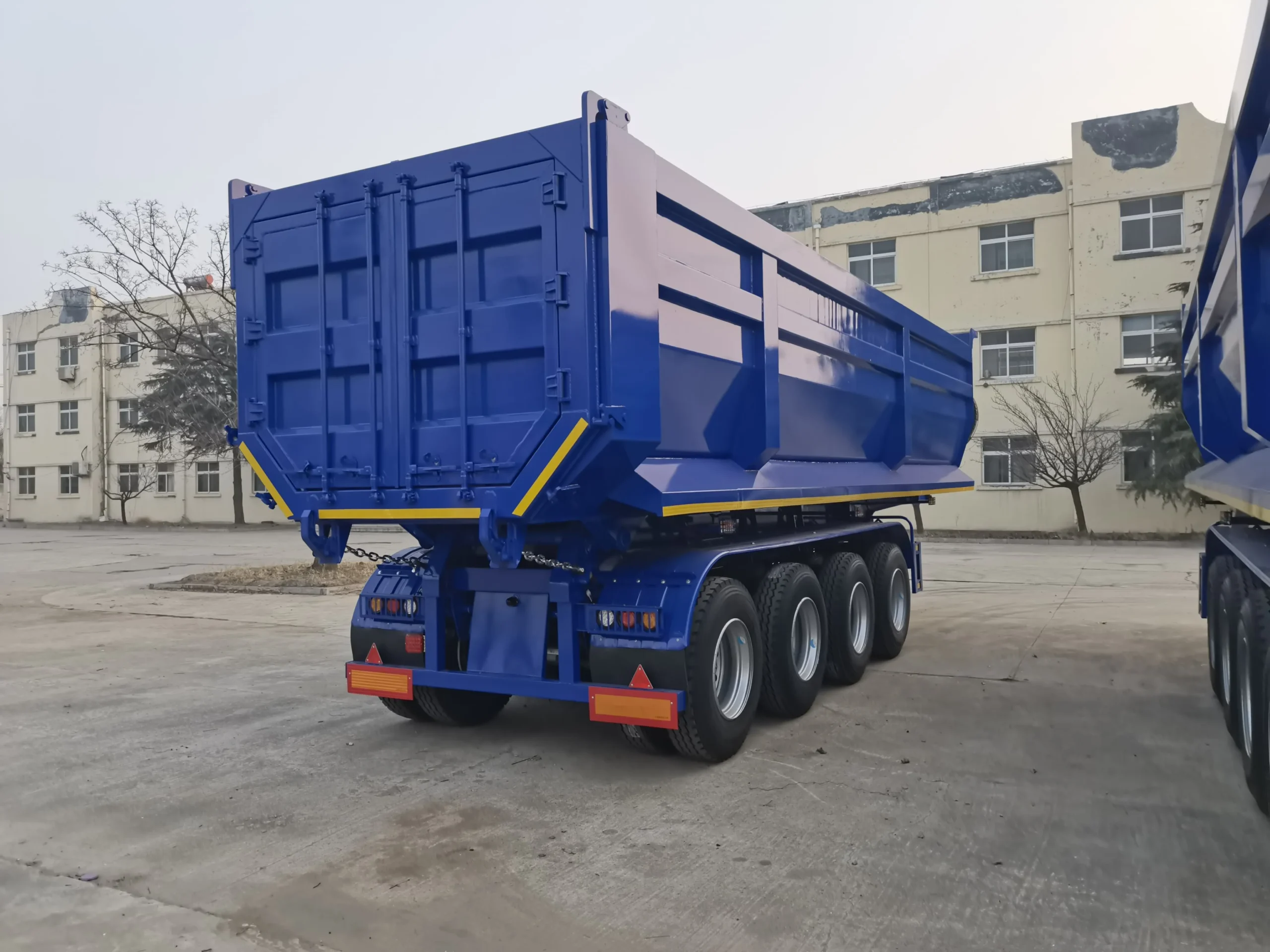

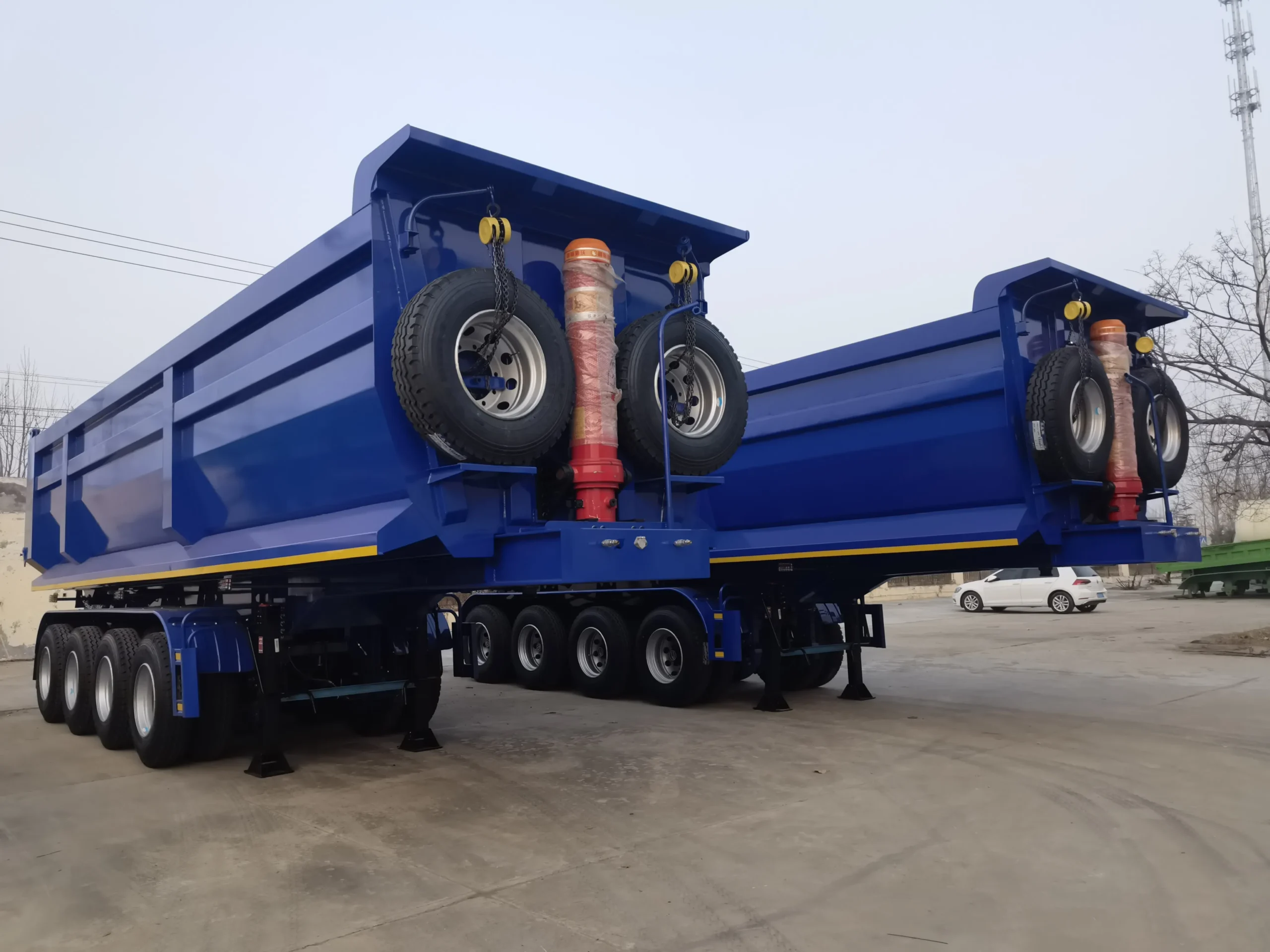

Spare wheels and landing gear
Twin spare wheels and two-leg landing gear are fitted at the front of the chassis.

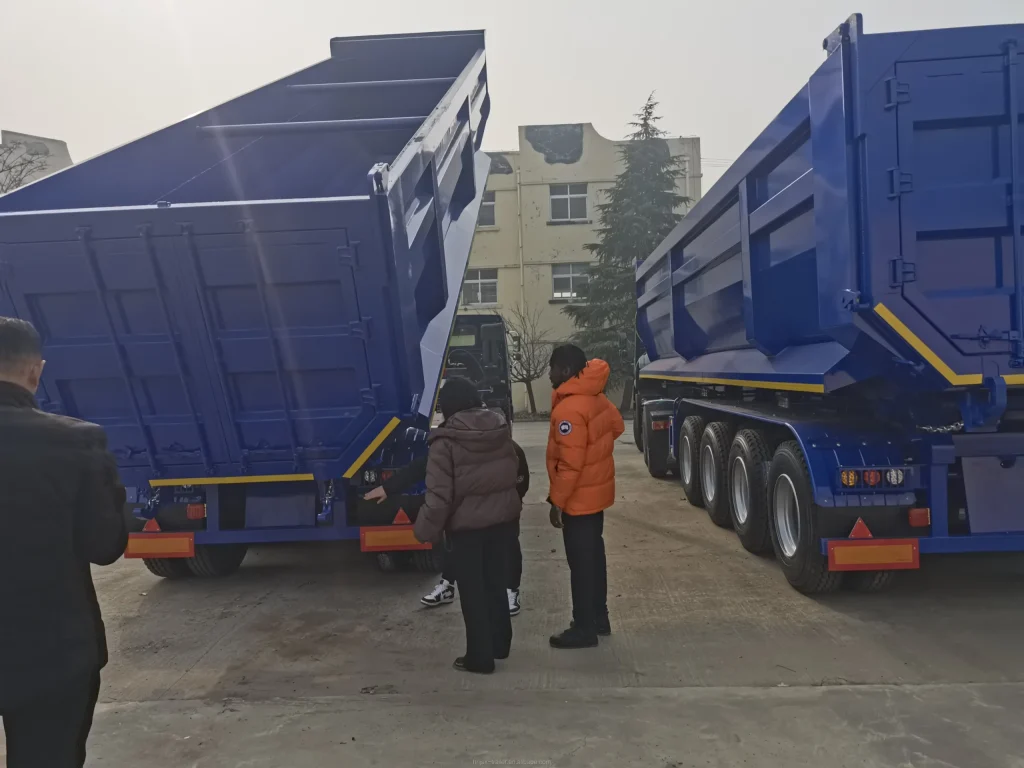

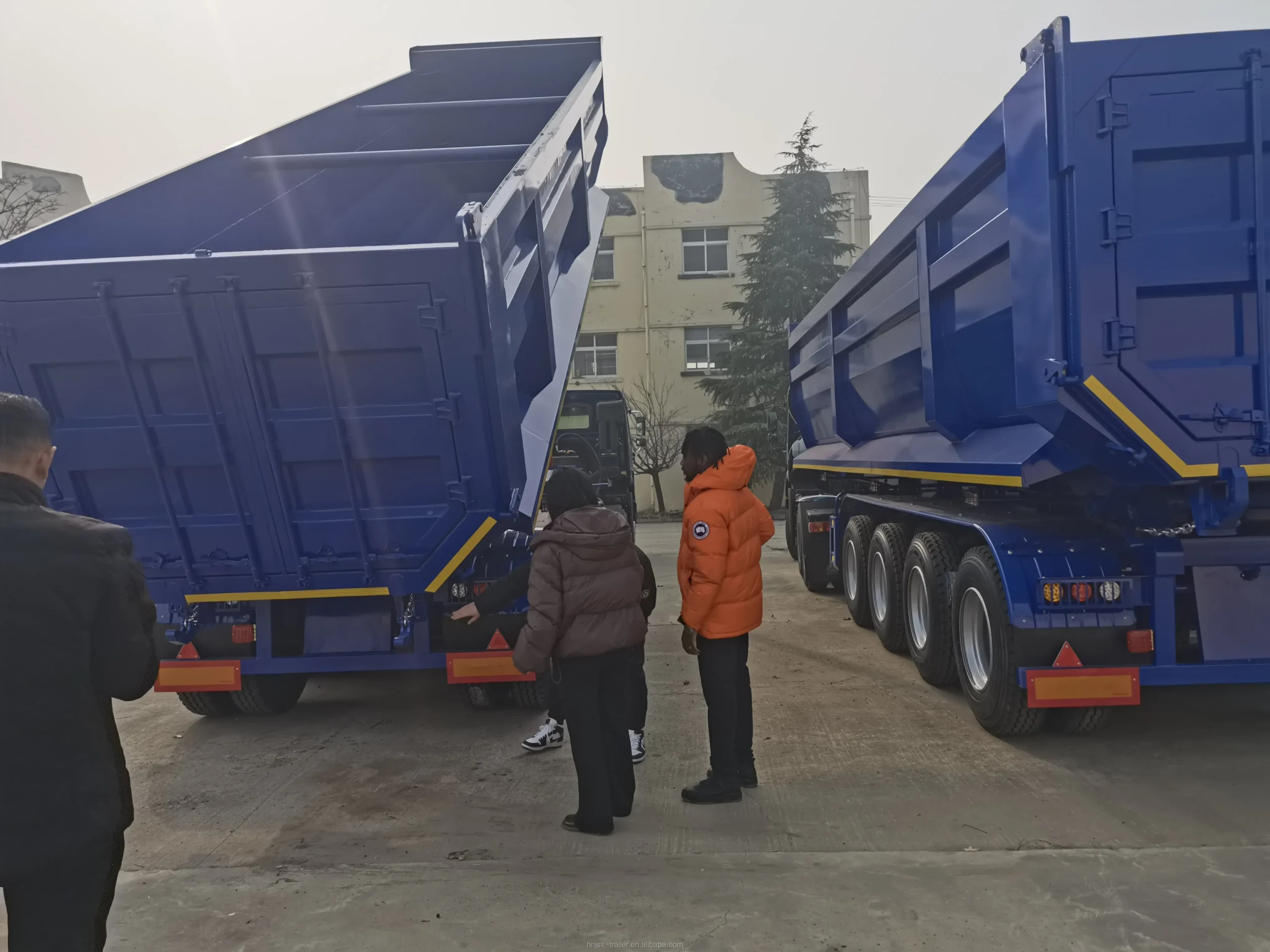

Rear view
Rear lights, markings and the hinged gate close off the back of the body.
Dimensions
4 Axle Air Suspension Dump Trailer Dimensions
Outside dimensions for route clearance, inside dimensions for cargo volume.
- الطول الإجمالي
- 10,800 mm (35 ft 5 in)
- العرض الإجمالي
- 2,500 mm (8 ft 2 in)
- الارتفاع الإجمالي
- 3,950 mm (12 ft 11.5 in)
- Inside length
- 9,640 mm
- Inside width
- 2,300 mm
- Inside height
- 1,900 mm
- تباعد المحاور
- 1,310 mm x 3

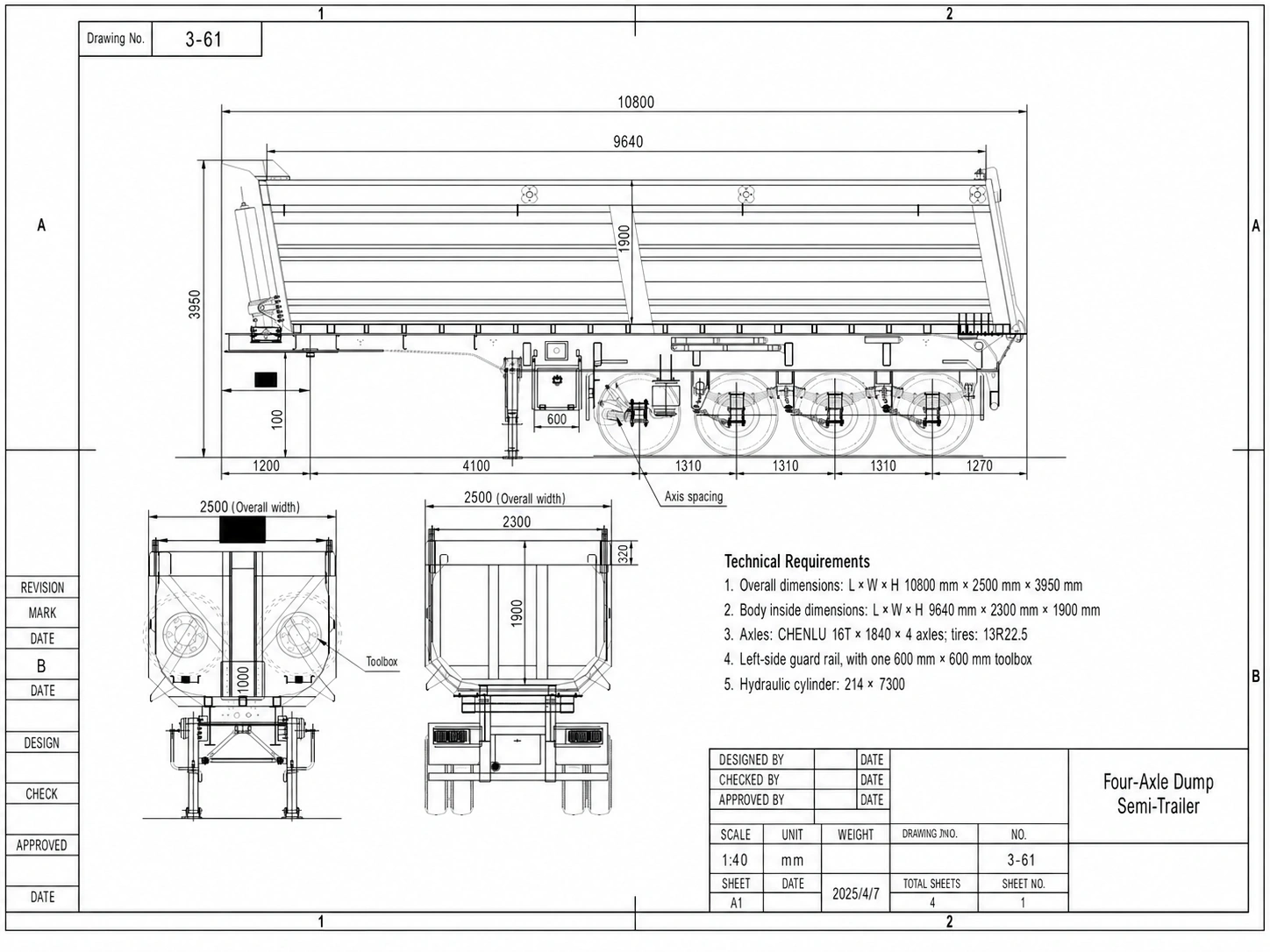

Reference: preliminary Drawing No. 3-61. Level-full body volume is about 42 m3; usable volume and payload are set for your cargo density, tractor and destination.
فيديو
Watch on YouTube ↗4 Axle Air Suspension Dump Trailer Walkaround
A finished trailer from several angles: the high-sided body, air-suspension running gear, front hydraulic lift, landing gear and rear gate.
Air Suspension or Mechanical Suspension for a Dump Trailer?
Three points to decide
Both work on a 4 axle tipper. Choose on your roads, loads and service network.
What should you send us before we size the body?
The Haul Details That Change the Trailer
Send the cargo name, loose bulk density, moisture and particle size; the target load and trips per day; the loading machine, bucket width and drop height; the tractor model and fifth-wheel height; and the destination, route limits and unloading ground. Density sets the body volume, loading impact sets floor and sidewall protection, and the route sets overall size and axle loading.
Configuration options
Axle, Suspension and Brake Options for the 4 Axle Dump Trailer
Air suspension is shown here. Mechanical suspension and other axle brands are available if they suit your roads and service network better.
01FUWA trailer axle
Chinese axle brand; ratings are matched to your payload and axle limits.
02BPW trailer axle
For fleets that keep BPW spares or use BPW service points.
03American-style axle
For markets that run American-style axles and wheel fitments.
04German-style mechanical suspension
Leaf-spring alternative to air suspension, easier to repair at remote sites.
05Suspension spare parts
Springs, hangers and wear parts can ship with the trailer as a spare-parts kit.
06WABCO brake valve
Brake valve option for fleets that standardise on WABCO air-brake parts; ask about ABS.
