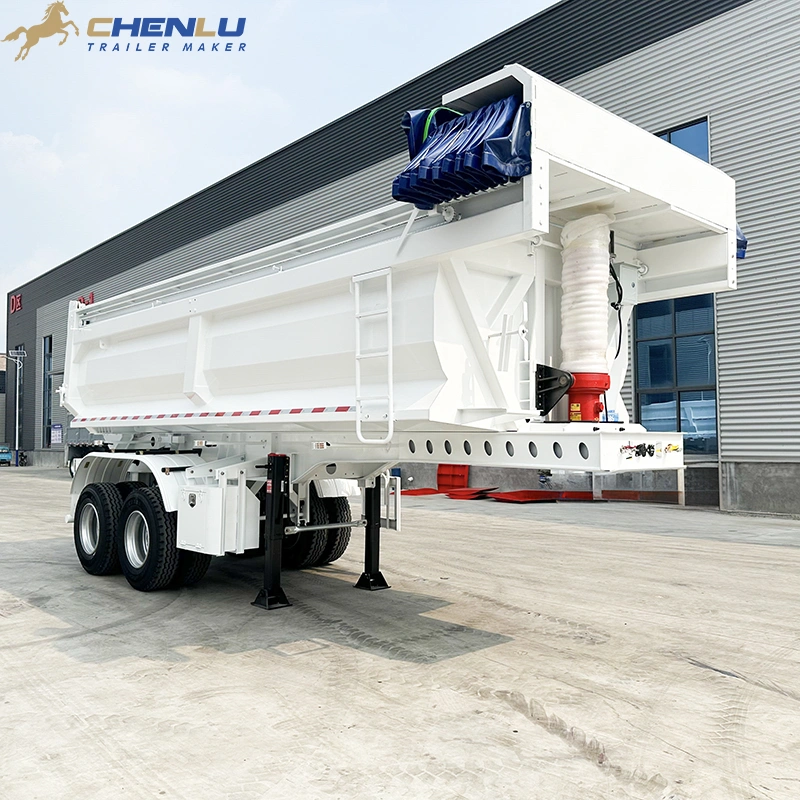

HYVA front cylinder
The cylinder at the front raises the body for rear tipping and lowers it after unloading.
Sand
Sand from supply yards to sites and concrete plants. Load from above, tip at the delivery point.
- الصفحة الرئيسية
- نبذة عن
- الكتالوج
-
المنتجات
-
نقل الحاويات والبضائع السائبة
مقطورة نصف مقطورة مسطحة شبه مقطورة سياج نصف مقطورة نصف ستارة جانبية مقطورة الهيكل العظمي مقطورة حاملة السيارات -
نقل السوائل والمساحيق
مقطورة ناقلة ألومنيوم مقطورة ناقلة الأسمنت السائبة مقطورة صهريج وقود مقطورة مقطورة الصهريج المصنوعة من الفولاذ المقاوم للصدأ مقطورات صهريج أسفلتية للبيع -
نقل الآلات والمعدات
مقطورة معقوفة معقوفة قابلة للطي نصف مقطورة نصف مقطورة منخفضة مقطورة متعددة المحاور منخفضة المقطورة مقطورة معقوفة معقوفة قابلة للإزالة -
نقل الرمال والفحم
نصف مقطورة نصف جدارية جانبية مقطورة نصف مقطورة قلابة -
شاحنة＆ مقطورات خاصة
شاحنات HOWO شاحنات فاو شاحنات فوتون شاحنات شاكمان شاحنات فوتون شاحنات دونج فينج قطع غيار المقطورات
-
- الحل
- الحالة
- تفضل بزيارة تشينلو
- المعرفة
- الدعم
- اتصل بنا
احصل على عرض أسعار

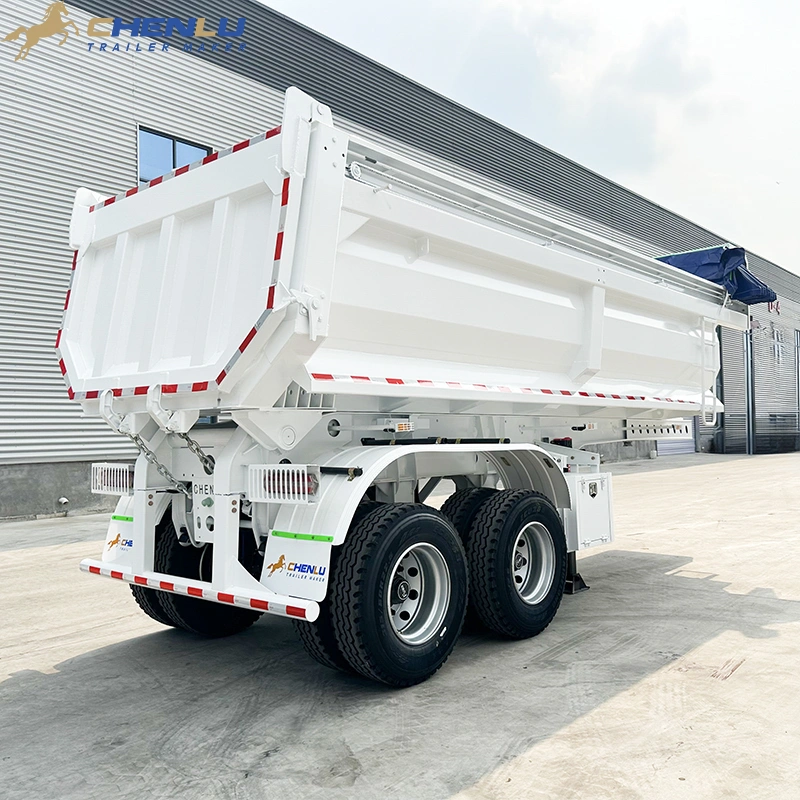

Tandem-axle tipper
2 Axle Rear Dump Semi Trailer with Electric Tarpaulin Cover

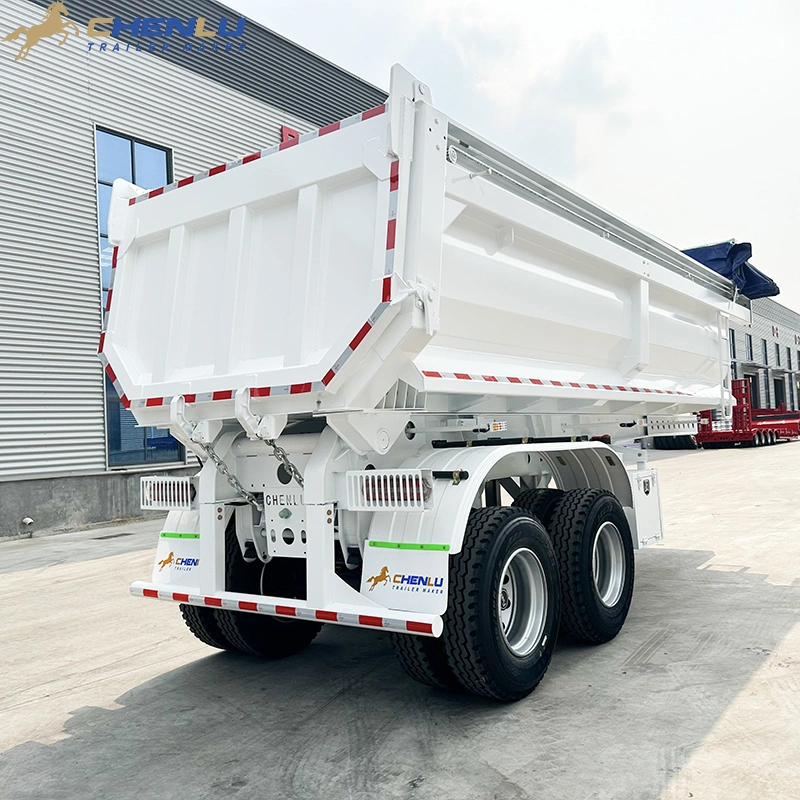

This tandem-axle rear dump semi trailer hauls sand, gravel, coal and other loose bulk. A front-mounted HYVA cylinder tips the high-sided body so the load runs out through the rear gate, and an electric tarpaulin covers it on the road.
- المحاور
- 2 x FUWA 13 t
- Body (inside)
- 6,600 x 2,300 x 1,400 mm
- Tested payload
- About 30-40 t
- Unloading
- Hydraulic rear tipping
Price: factory-direct, quote on inquiry
الضمان: 2 سنة
Body volume matched to your cargo
وصف المنتج

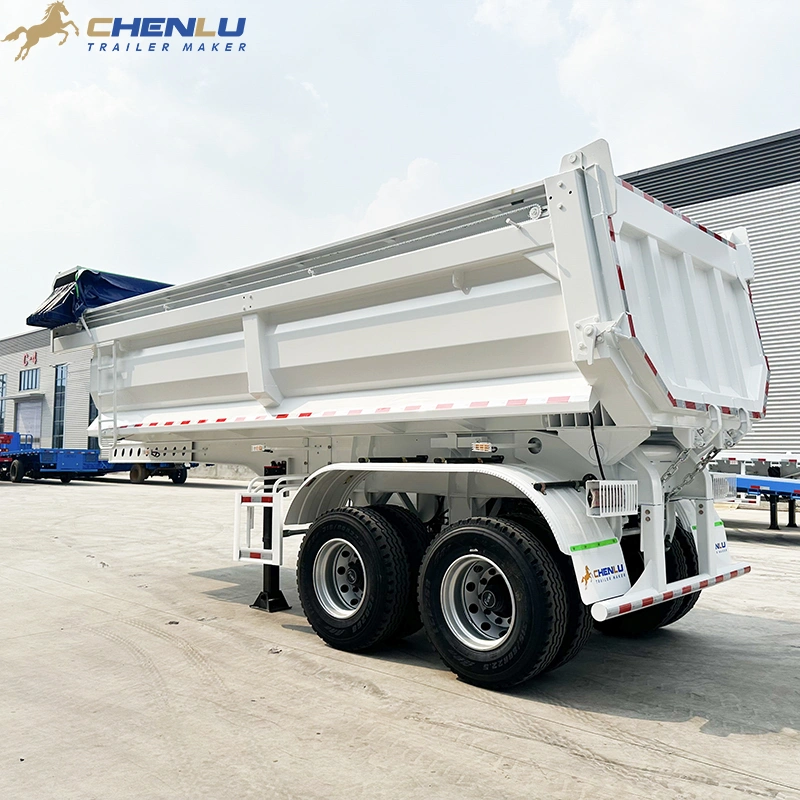

High-Sided Body, HYVA Front Cylinder and Electric Cover
The rectangular body is 6,600 mm long, 2,300 mm wide and 1,400 mm deep inside, with lower sides that slope toward the floor. A HYVA 191 x 5600 cylinder at the front lifts the body and the load flows out through the rear gate. An electrically operated tarpaulin closes over the top for transport. In load tests at our factory the trailer carried about 30-40 tonnes; the payload you can run depends on cargo density and the weight limits on your route. The two 13 t axle ratings are component ratings, not the trailer payload.
-
القلب الخلفي
-
Electric tarp cover
-
Matched to your cargo
| النوع | 2 axle rear dump (end dump) semi trailer |
| Overall size (L x W x H) | 7,800 x 2,500 x 3,750 mm |
| Internal body (L x W x H) | 6,600 x 2,300 x 1,400 mm |
| المحاور | 2 x FUWA, 13 t each |
| تباعد المحاور | 1,310 mm |
| Tyres | 315/80R22.5 |
| Unloading | Hydraulic rear tipping |
| Hydraulic cylinder | HYVA 191 x 5600, front-mounted |
| Cargo cover | Electrically operated tarpaulin |
| صندوق الأدوات | One 600 x 600 mm, right side |
| Side guard | Left side |
| Tested payload | About 30-40 t in factory load tests |
| الضمان | 2 years |

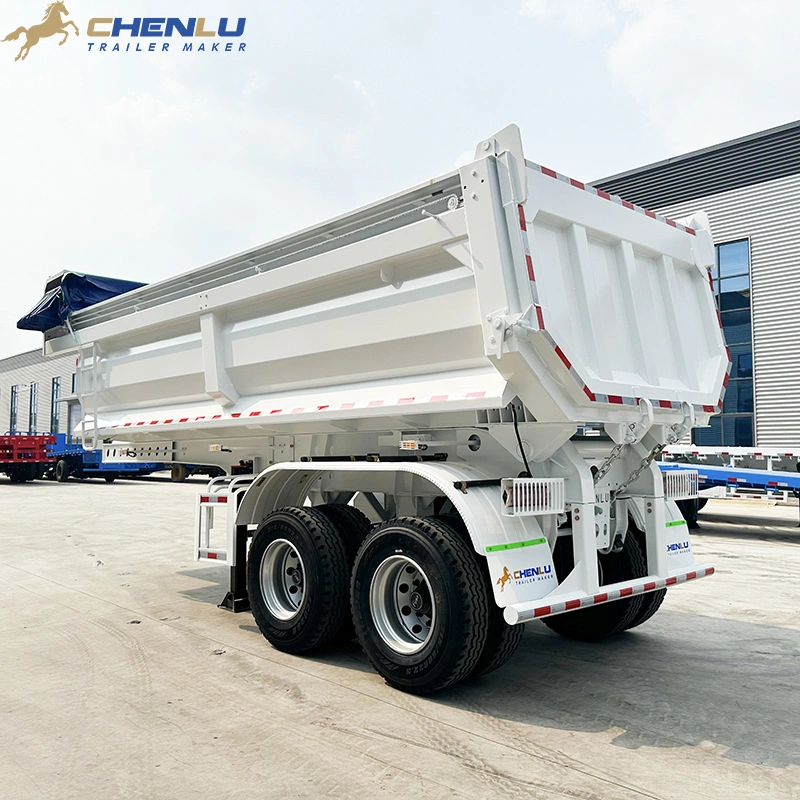

Tipping system
Front Cylinder, Rear Gate and Electric Cover
Three parts handle loading, transport and unloading.

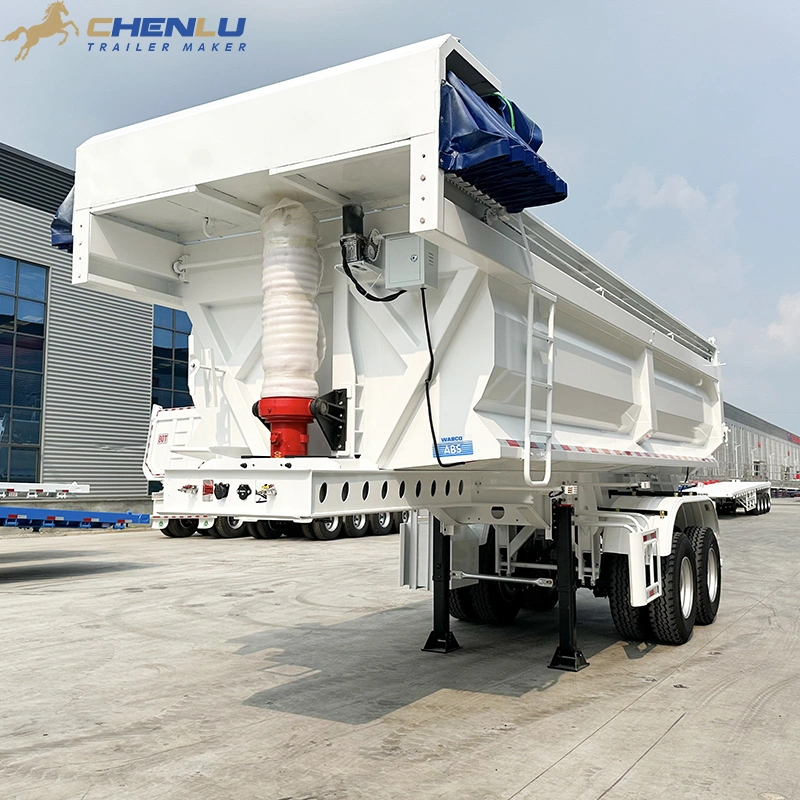

البوابة الخلفية
The gate holds the load on the road and opens for discharge. Wet or sticky material flows out more slowly.
Electric tarpaulin
The tarp extends and retracts electrically, limiting wind loss on the road and opening for loading from above.
الشاسيه
Tandem Axles and Underbody Equipment
Two axles 1,310 mm apart sit under the rear of the body.

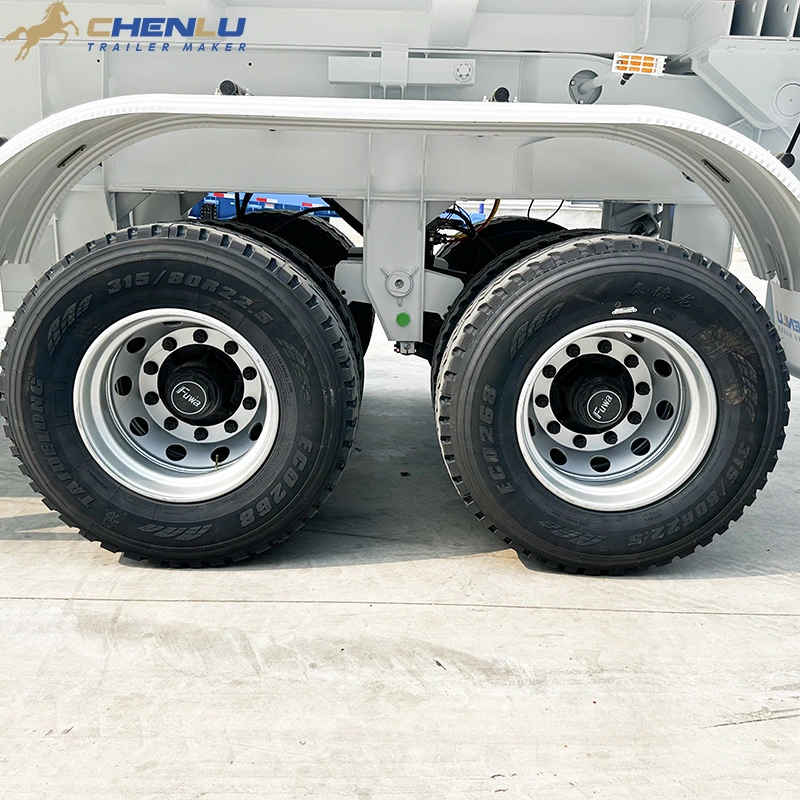

FUWA axles, 315/80R22.5 tyres
Two FUWA axles rated 13 t each, on 315/80R22.5 tyres.

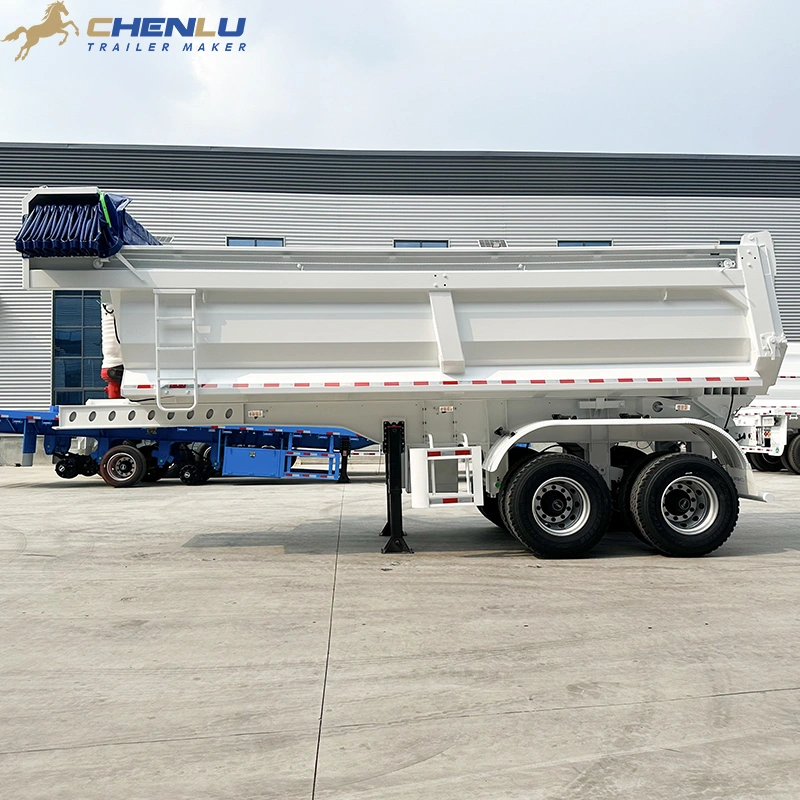

Landing gear and toolbox
Landing gear and a 600 x 600 mm toolbox sit ahead of the axle group; the side guard is on the left.
High-sided cargo body
Straight upper sidewalls with lower sides sloping toward the floor help the load slide out.
Dimensions
2 Axle Rear Dump Trailer Dimensions
Outside dimensions decide route and yard clearance; inside dimensions decide how much material fits.
- الطول الإجمالي
- 7,800 mm (25 ft 7 in)
- العرض الإجمالي
- 2,500 mm (8 ft 2 in)
- الارتفاع الإجمالي
- 3,750 mm (12 ft 4 in)
- Inside length
- 6,600 mm
- Inside width
- 2,300 mm
- Inside height
- 1,400 mm
- تباعد المحاور
- 1,310 mm

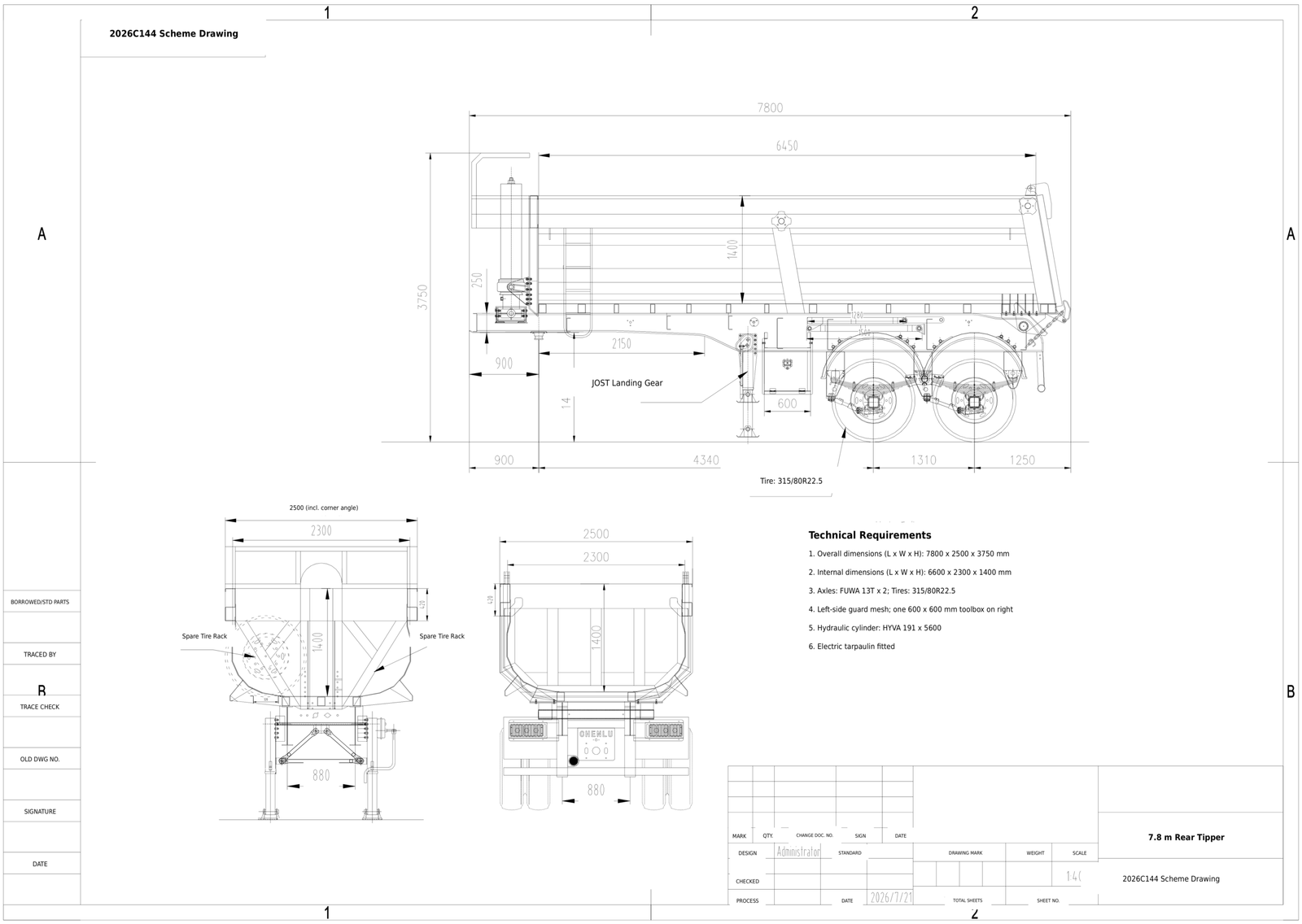

Specifications from the general arrangement drawing. Payload and tare weight are not stated on the drawing; the 30-40 t figure comes from factory load tests.
فيديو
Watch on YouTube ↗2 Axle Rear Dump Trailer: Tipping and Cover
Product video of the finished trailer: hydraulic body lift, rear-gate discharge and the electric tarpaulin cover.
What Can a 2 Axle Dump Trailer Haul?
Match the body to your material
The same body volume holds very different weights of sand, gravel and coal. Tell us your material and we size the body.
Why can't you work out payload from body volume?
Cubic Metres Are Not Tonnes
The 6,600 x 2,300 x 1,400 mm body holds about 21 cubic metres level-full, but that volume weighs very differently by material: dry sand is far heavier per cubic metre than coal. A bigger box does not raise the permitted load, which is set by axle and tyre ratings, the tractor and your road limits. Send the material and its bulk density, and we size the body so a full load stays within your legal weight.
Configuration options
Axle, Suspension and Brake Options for the 2 Axle Dump Trailer
FUWA 13 t axles are fitted as shown. If your fleet services other brands, choose them here.
01FUWA trailer axle
Fitted as shown: two FUWA axles rated 13 t each.
02BPW trailer axle
German axle brand for fleets that keep BPW spares.
03American-style axle
For markets that run American-style axles and wheel fitments.
04German-style mechanical suspension
Leaf-spring suspension that copes with quarry and site roads and is easy to repair.
05Suspension spare parts
Springs, hangers and wear parts can ship with the trailer as a spare-parts kit.
06WABCO brake valve
Brake valve option for fleets that standardise on WABCO air-brake parts.
Why trust CHENLU
Built in Our Own Factory, Backed by Verifiable Facts
Your dump trailer is cut, welded, painted and load-tested in our own factory.
Since 2008
Factory-direct manufacturing
Our own manufacturing base in Heze, Shandong: 60,000 m² of workshops and more than 300 workers and engineers.
ISO 9001 + CCC
Certified quality system
ISO 9001:2015 quality management and China Compulsory Certification, with 32 national patents (21 granted).
10–30 days
Built to your drawing
Custom builds typically take 10–30 days after deposit, with photo and video updates. Pre-shipment inspection is welcome.
2-year warranty
After-sales support
Spare parts, operation guides and maintenance advice for the trailers we build.
Customer visits
Dump Trailer Buyers Who Visited Our Factory
Buyers from Togo, Burkina Faso, Pakistan, Australia and other markets have inspected their dump trailers at CHENLU. Click any photo to see more visits or plan your own.
عملاء من كوستاريكا يزورون المصنع للتعرف على المقطورات شبه المقطورة ذات القاعدة المنخفضة والمقطورات شبه المقطورة القلابة عالية الأداء
زيارة عميل من الإمارات العربية المتحدة لمصنعنا
العملاء الأفارقة معجبون بحلول شبه المقطورات القلابة للخدمة الشاقة التي تقدمها شركة «تشينلو»
Customer from Togo visiting the CHENLU trailer factory
Customer from Burkina Faso at the CHENLU factory
Brazilian business partner visiting the CHENLU factory
Customer from Pakistan reviewing trailers at CHENLU
Australian customer visiting the CHENLU trailer factoryVisit CHENLUPlan your visit to the CHENLU factoryالأسئلة الشائعة
2 Axle Rear Dump Trailer FAQ
01How much can a 2 axle dump trailer carry?
In factory load tests this trailer carried about 30-40 tonnes. The payload you can legally run depends on cargo density, tyre and axle ratings, the tractor and the weight limits in your country.
02What is the body size?
Inside, the body is 6,600 mm long, 2,300 mm wide and 1,400 mm deep. Overall the trailer is 7,800 x 2,500 x 3,750 mm.
03What materials can it haul?
Sand, gravel, crushed aggregate, coal and other loose bulk materials. Material density decides how full the body can be.
04How does it unload?
A front-mounted HYVA hydraulic cylinder lifts the body and the load discharges through the rear gate. Tip only on firm, level ground with enough overhead clearance.
05Does it come with a cover?
Yes. An electrically operated tarpaulin covers the load in transport and retracts for loading from above.
06What do you need for a quote?
Cargo type and bulk density, required payload, tractor model, destination country, unloading conditions and order quantity.
