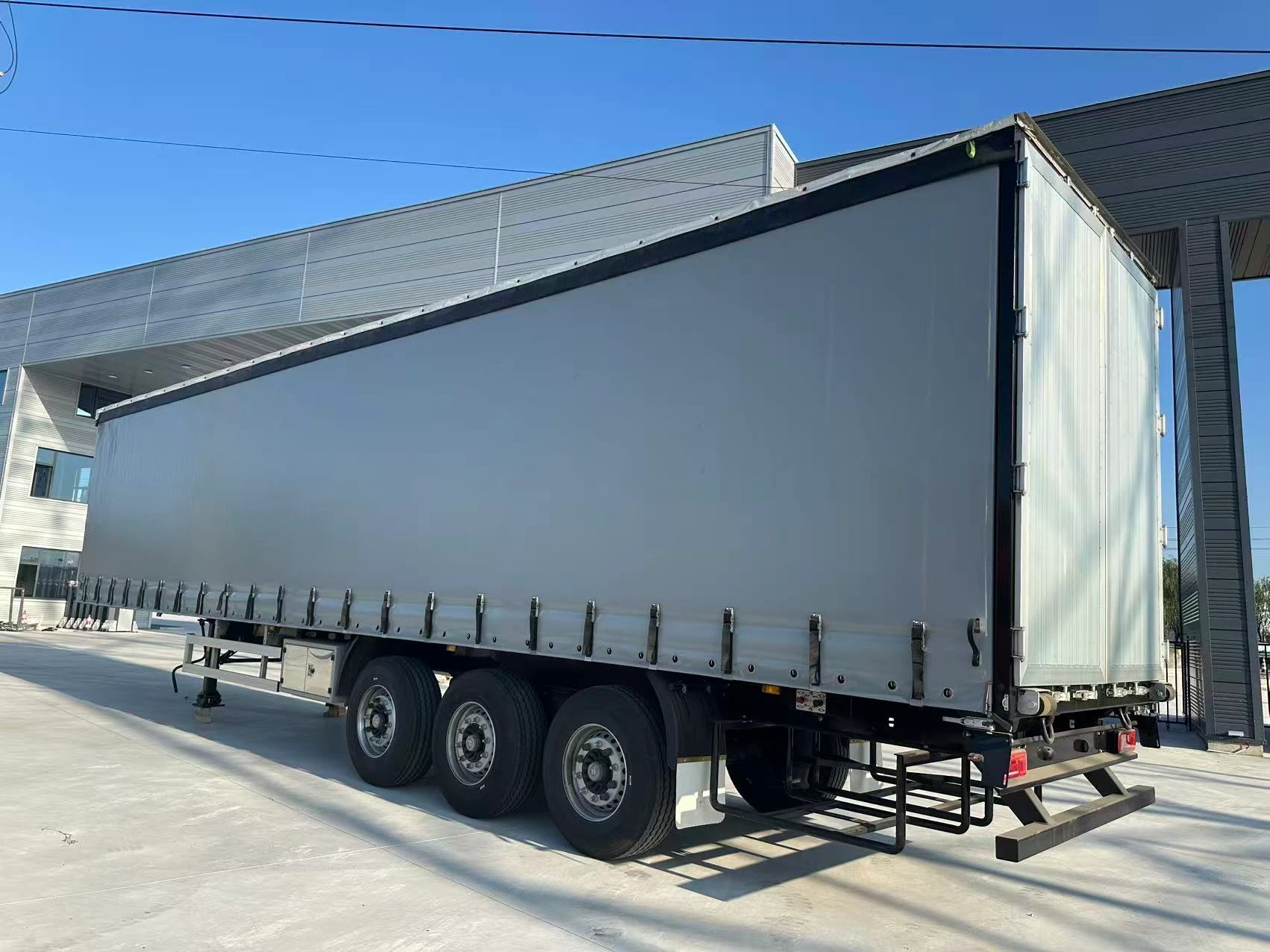

تنقل نصف المقطورة الستائرية هذه ذات الـ 3 محاور البضائع الجافة المغلفة والمحمّلة على منصات نقالة. ويمكن للرافعة الشوكية الوصول إلى الحمولة من الجانب بمجرد سحب الستارة، بينما تخدم الأبواب الخلفية المزدوجة رصيف التحميل.

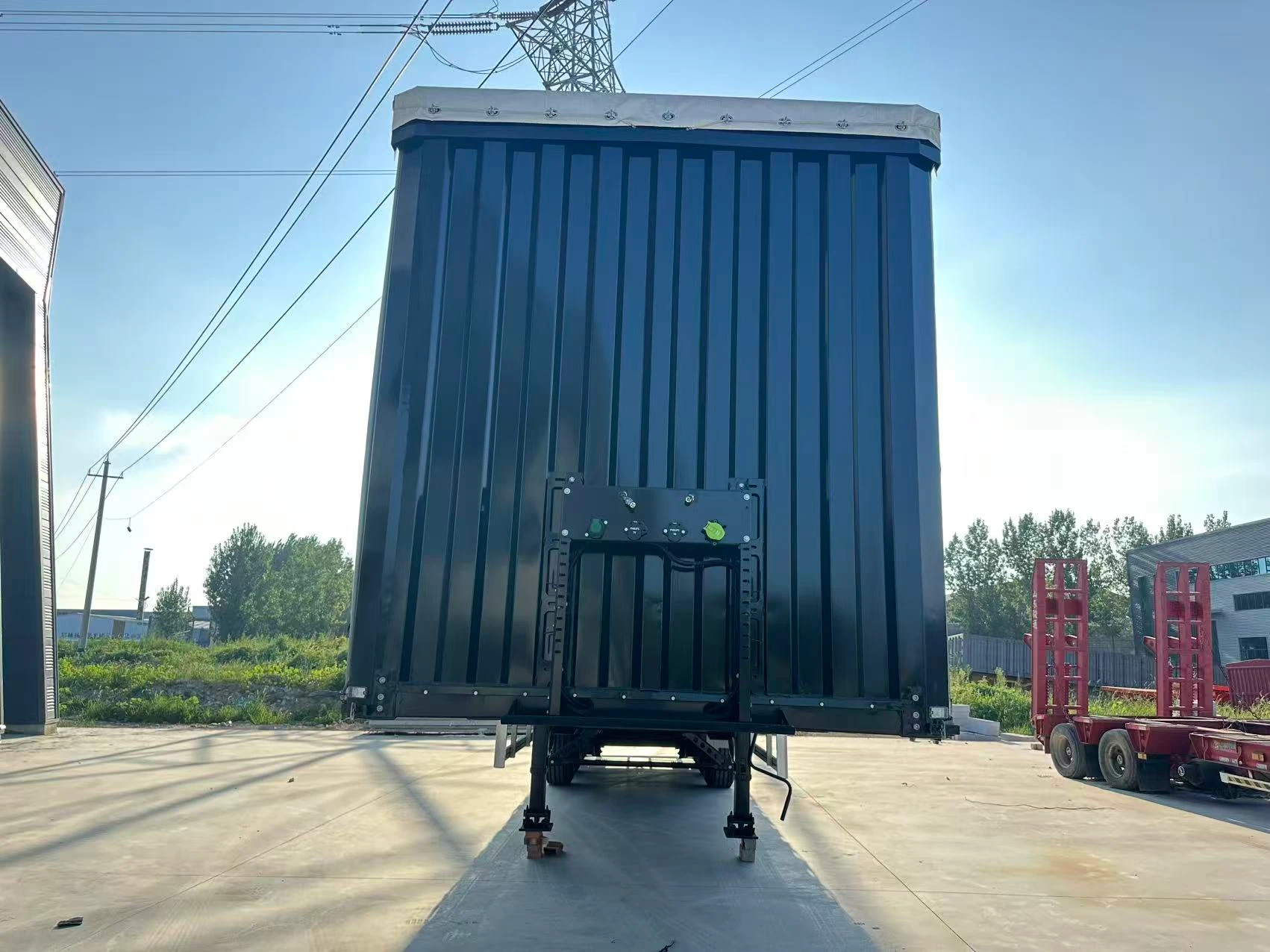

The body has a fixed front bulkhead and a roof frame, with curtains on both sides that are buckled down along the lower rail. Two metal doors at the back open to a loading dock, so the side curtain can stay shut when you load from behind. Curtains protect the cargo from weather but do not hold it in place; plan your own lashing and anchor points. All sizes on this page are reference figures from the supplied drawing, and the approved production drawing is the final record.
Side and rear loading
Covered cargo body
Customizable configuration
| النوع | Curtain side semi trailer |
| المحاور | 3, grouped under the rear of the floor |
| Overall size (L × W × H) | 12,750 × 2,600 × 4,400 mm max. |
| Internal size (L × W × H) | 12,440 × 2,510 × 2,680 mm |
| Cargo body | Rigid front bulkhead, roof frame, side curtains with lower-rail buckles |
| تحميل الوصول | Side (curtain) and rear (double doors) |
| Fittings | Landing legs, side guard, toolbox, storage rack |
| Suitable cargo | Palletized and packaged dry freight |
| الضمان | 2 years |
| الإعدادات | To buyer’s request; confirmed on the approved drawing |
The side curtain and the rear doors work independently, so you can choose the route that suits the dock or the forklift.

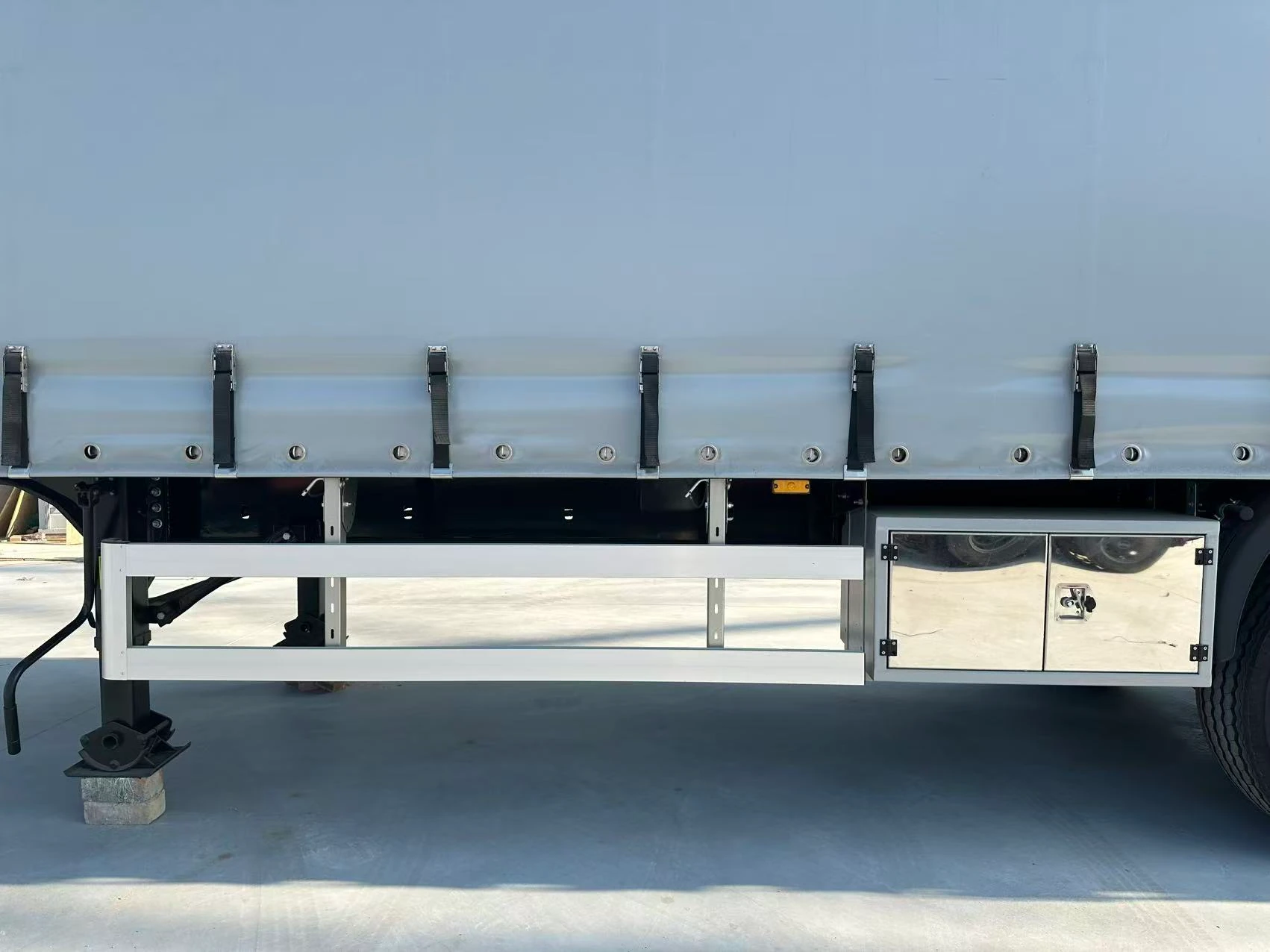

Straps run from the curtain down to buckles on the lower side rail. Release them before drawing the curtain back for side loading. The landing leg, side guard and toolbox sit below the curtain line.

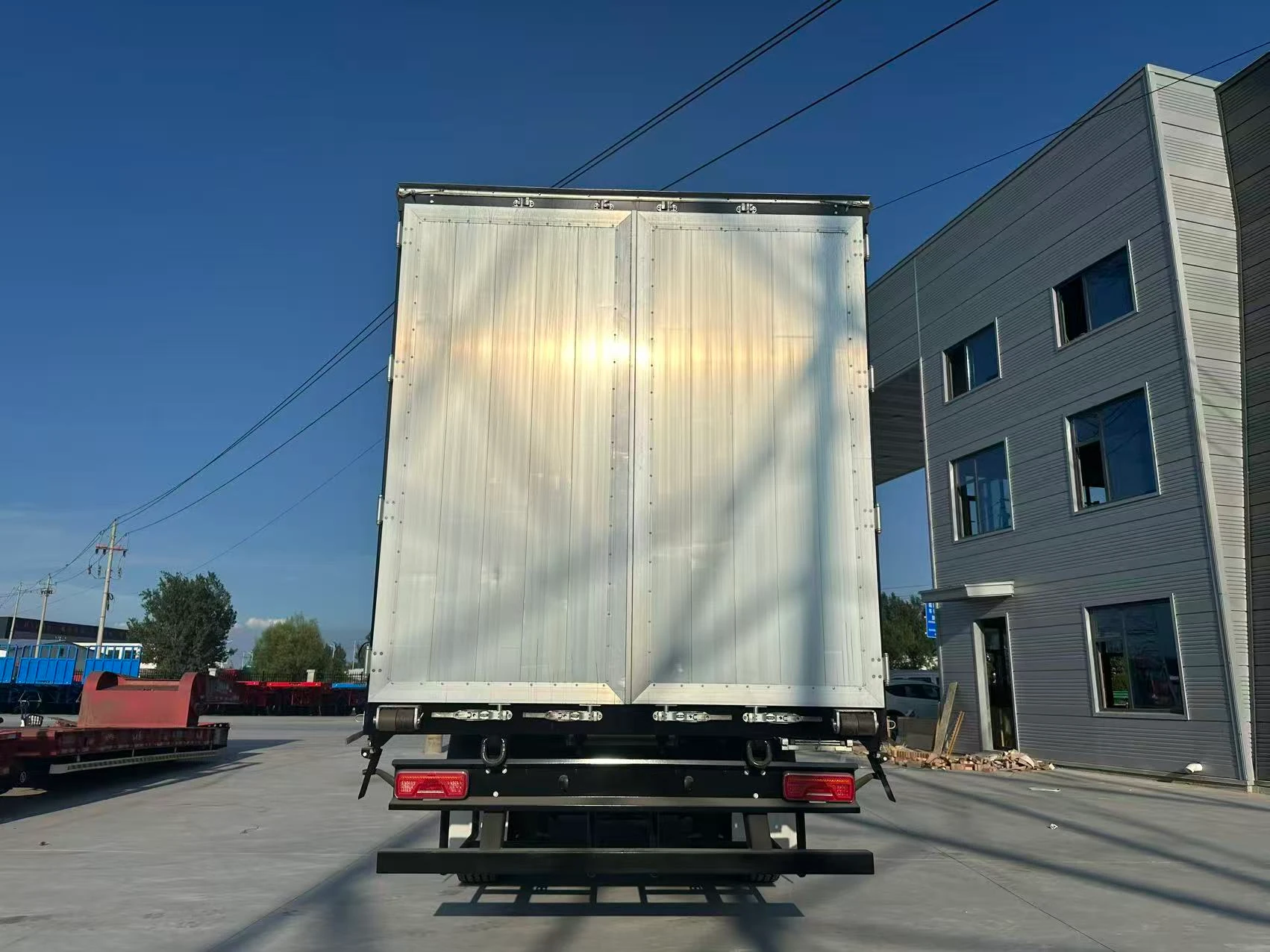

The door leaves meet in the centre of the rear opening and are hinged at the outer edges. Use them for dock loading while the side curtain stays closed.
The cargo body sits on a full-length chassis with three axles under the rear of the floor.

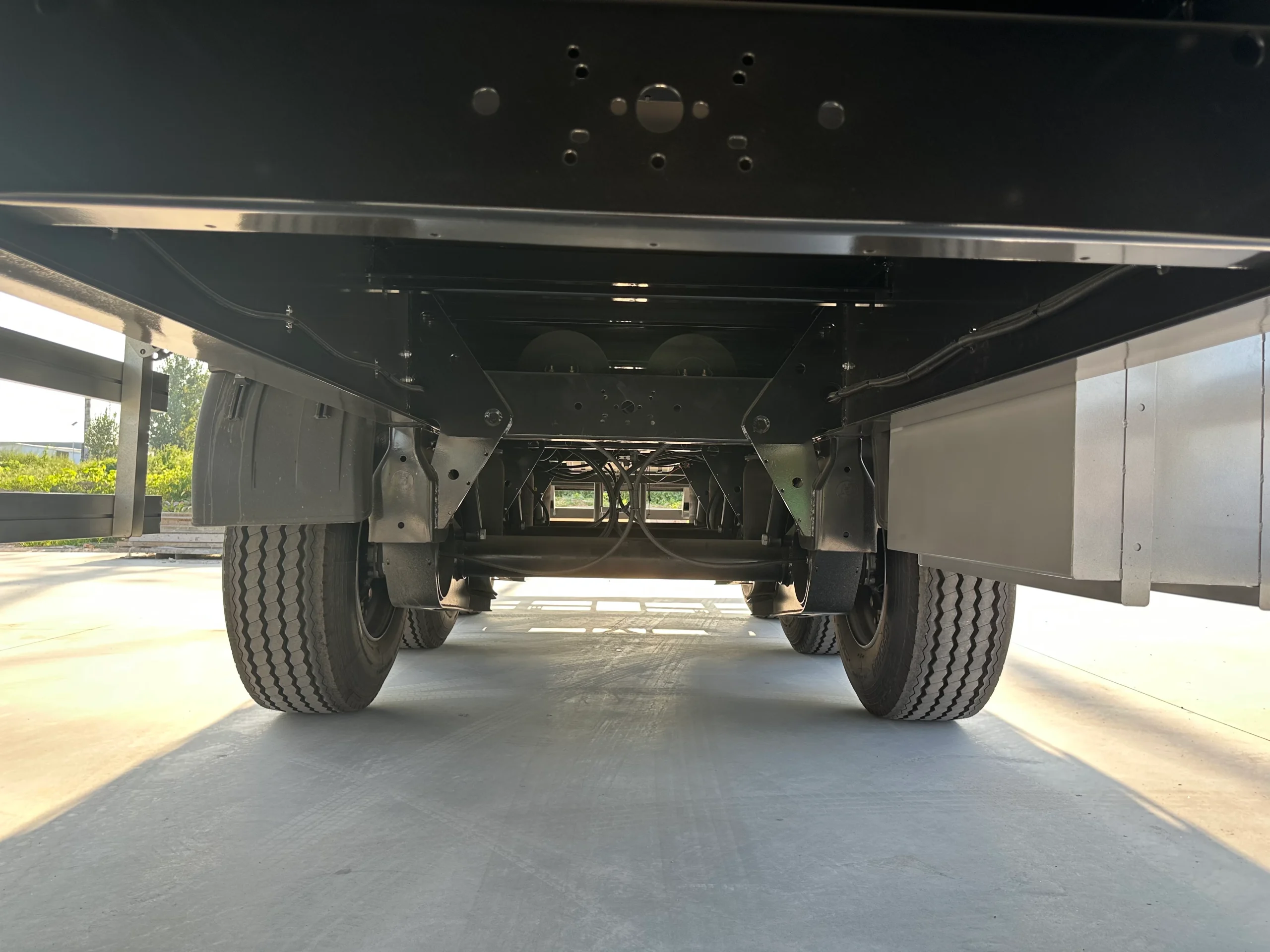

Two longitudinal beams run from the coupling section to the rear, joined by crossmembers beneath the loading floor.

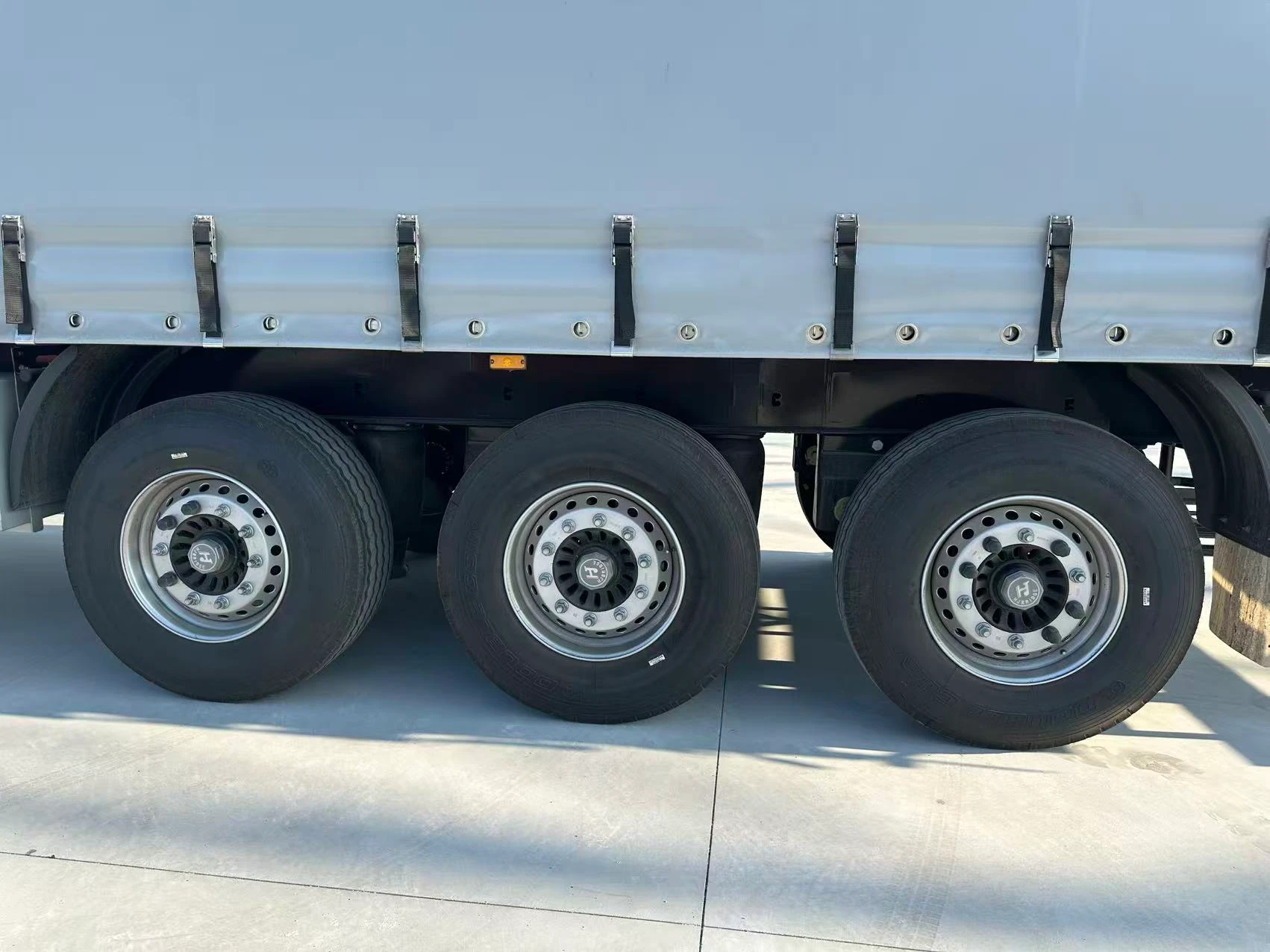

All three axles are grouped under the rear section of the body, below the lower curtain rail.

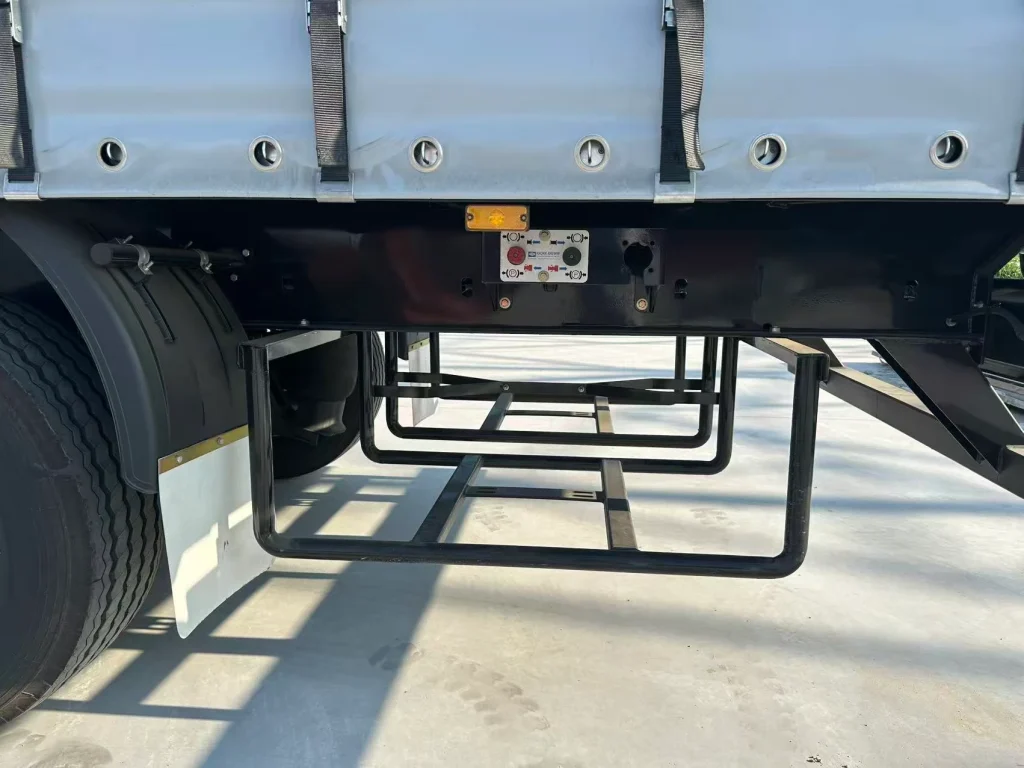

An open rack under the side rail near the rear wheels keeps stored items outside the curtained cargo space.

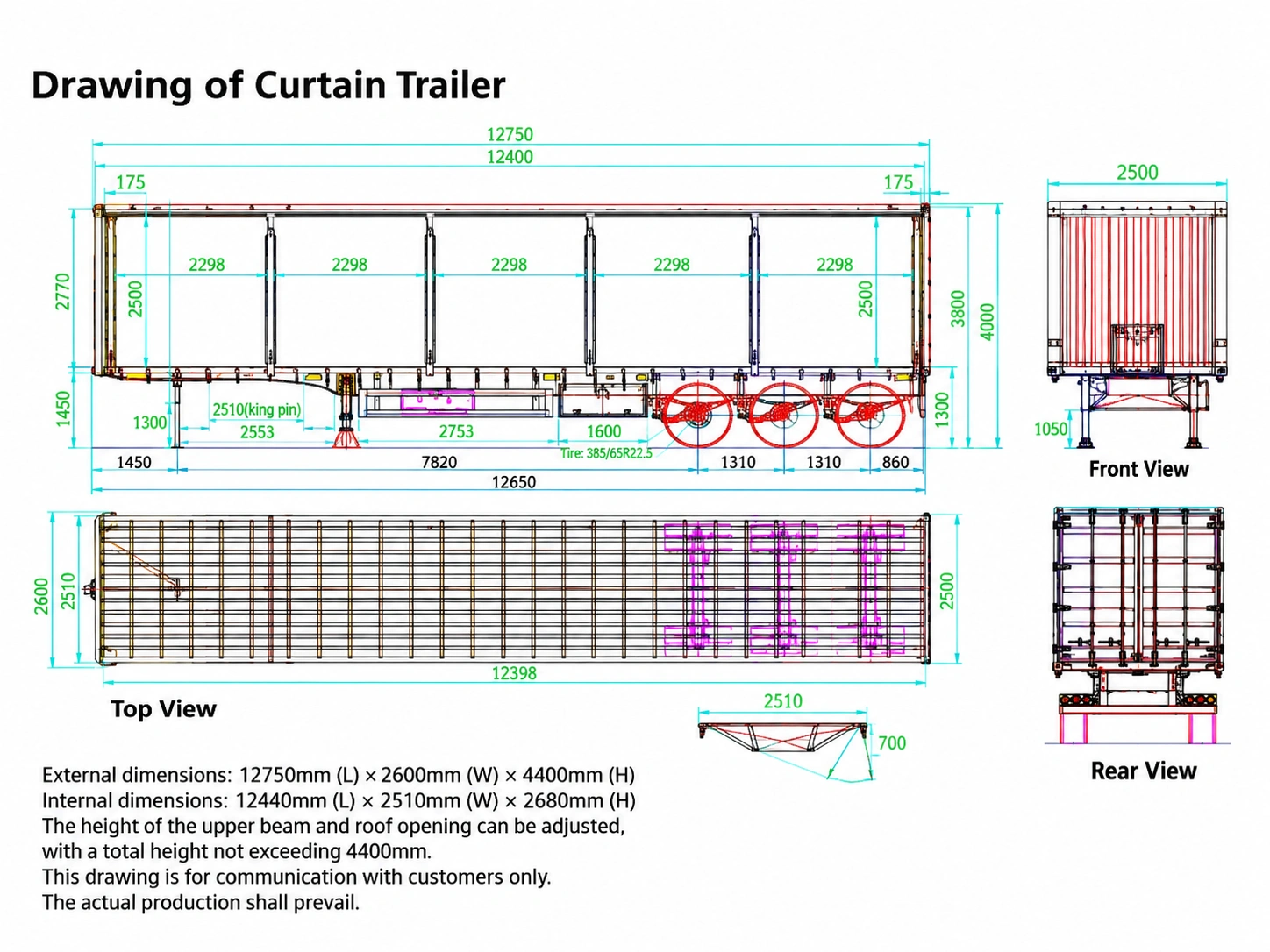

Use the internal size to check your pallet layout and the overall size to check route and yard clearance.
The upper beam and roof opening can be adjusted, with total height not above 4,400 mm. These are reference dimensions for discussion; the production drawing is approved before manufacture.
A 37-second walkaround from the front bulkhead to the rear: curtain buckles, landing gear, side guards, axle group and rear structure.
Match the body to the freight, the loading method and your route limits.
Side curtains let a forklift reach pallets along the floor. Rear doors serve a dock. Tell us which you use most.
Check packed dimensions and transport weight against the internal size and the axle-load limits on your route.
Axle number, suspension type and ride height can be configured. Confirm the tractor interface and route before production.
A curtain side semi trailer sits between a box van and a flatbed. Like a box van, its roof, front bulkhead, curtains and rear doors keep palletized cargo out of rain and dust. Like a flatbed, the curtains slide back so a forklift can load the full length from the side, without waiting for a rear dock. Choose a box van when you need fully rigid, lockable walls; choose a flatbed for oversized or crane-loaded cargo; choose a curtain side trailer when you move covered pallets and need fast side loading.
Choose the running gear to suit your loads, roads and local parts supply. The final configuration is confirmed on the approved drawing before production.
A widely used Chinese axle brand. Choose the axle rating to match your legal axle-load limit.
German axle brand for fleets that already stock BPW parts or use BPW service networks.
For markets and fleets that run American-style running gear and wheel fitments.
Leaf-spring mechanical suspension with a German-style layout, simple to inspect and repair in the field.
Leaf springs, hangers and equalizers can be supplied with the trailer as a spare-parts kit on request.
Brake valve option for fleets that specify WABCO air-brake components. ABS can be discussed at quotation.
You buy directly from the manufacturer that welds, paints and inspects your trailer.
Our own manufacturing base in Heze, Shandong: 60,000 m² of workshops and more than 300 workers and engineers.
ISO 9001:2015 quality management and China Compulsory Certification, with 32 national patents (21 granted).
Custom builds typically take 10–30 days after deposit, with photo and video updates. Pre-shipment inspection is welcome.
Spare parts, operation guides and maintenance advice for the trailers we build.
Fleet owners and distributors from Africa, the Americas, the Middle East, Asia and Australia have visited CHENLU to review production before confirming their order. Click a photo to see more visits or plan your own.
عملاء من كوستاريكا يزورون المصنع للتعرف على المقطورات شبه المقطورة ذات القاعدة المنخفضة والمقطورات شبه المقطورة القلابة عالية الأداء
زيارة عميل من الإمارات العربية المتحدة لمصنعنا
العملاء الأفارقة معجبون بحلول شبه المقطورات القلابة للخدمة الشاقة التي تقدمها شركة «تشينلو»
Customer from Togo visiting the CHENLU trailer factory
Customer from Burkina Faso at the CHENLU factory
Brazilian business partner visiting the CHENLU factory
Customer from Pakistan reviewing trailers at CHENLU
Australian customer visiting the CHENLU trailer factoryVisit CHENLUPlan your visit to the CHENLU factoryPalletized and packaged dry freight that needs a covered body with side or rear access. Check packed dimensions, transport weight and the loading plan before the configuration is approved.
Yes. Open the side curtain for forklift access along the floor, or use the double rear doors at a dock.
Reference internal size is 12,440 x 2,510 x 2,680 mm; reference external size is 12,750 x 2,600 mm with a maximum height of 4,400 mm. The approved production drawing is the final record.
No. The curtains close the body but do not replace load restraints. Choose lashing and anchor points to suit the cargo and the rules on your route.
The drawing allows the upper beam and roof opening to be adjusted, with total height not above 4,400 mm. Agree the final opening on the production drawing.
Cargo type, packed dimensions, transport weight, loading method, destination country or port, quantity, applicable standard and target delivery date.
