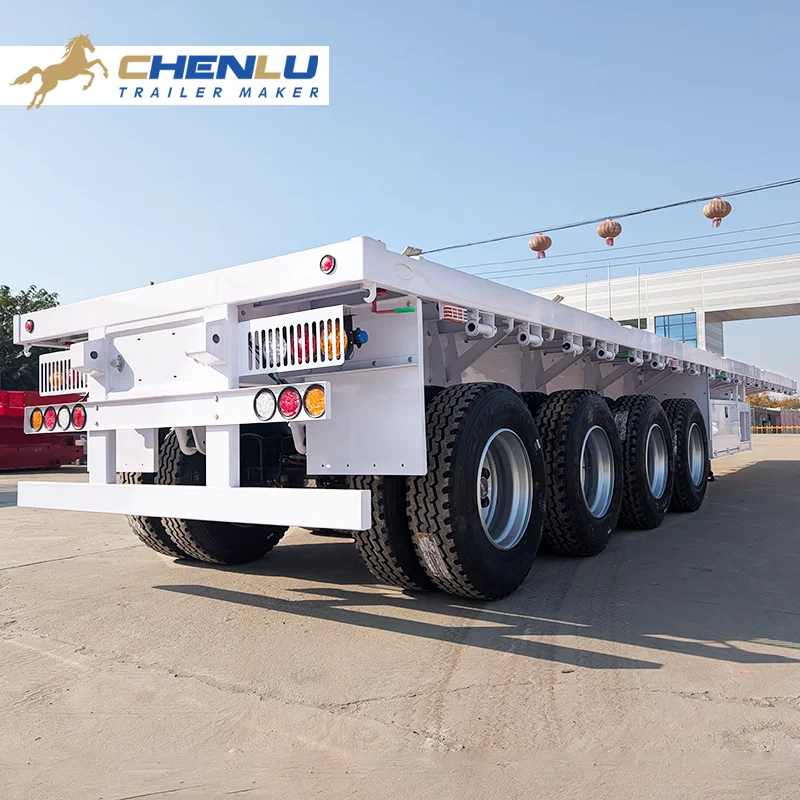

صُنعت هذه الشاحنة المسطحة القوية ذات 4 محاور من الفولاذ عالي الشد الفاخر، وهي مصممة لتحمل أكثر عمليات النقل لمسافات طويلة تطلباً. كما أنها تتميز بنظام تعليق ميكانيكي معزز يضمن ثباتاً فائقاً وسلامة هيكلية فائقة عبر التضاريس الوعرة، وهي مصممة بشكل مثالي لنقل البضائع السائبة والحاويات القياسية بسلاسة.
used for port and intercity logistics, it flexibly transports 20 or 40-foot containers and bulk steel cargo via 12 locks, and is specifically designed for the harsh road conditions in Africa.
Multi-purpose Trailer
Efficient transportation
Strong stability
|
Flatbed Semi Trailer Specification
|
||
|
20FT FLATBED SEMI TRAILER
|
40FT FLATBED SEMI TRAILER
|
45FT FLATBED SEMI TRAILER
|
|
Brand: CHENLU
|
Brand: CHENLU
|
Brand: CHENLU
|
|
2 Axles/3 Axles
|
2 Axles/3 Axles
|
3 Axles
|
|
20ft container or cargo loading
|
1*40ft/2*20ft Container or cargo loading
|
1*40ft/1*45ft container or cargo loading
|
|
Loading Capacity: 20 – 40 Tons
|
Loading Capacity: 30 – 80 Tons
|
Loading Capacity: 30 – 80 Tons
|
|
Gooseneck Type: Yes
|
Gooseneck Type: Yes
|
Gooseneck Type: Yes
|
|
Tandem Type: Yes
|
Tandem Type: Yes
|
Tandem Type: Yes
|
|
Main Beam
|
||
|
Material: Q345/T700
|
Material: Q345/T700
|
Material: Q345/T700
|
|
Upper Plate Thickness: 12mm
|
Upper Plate Thickness: 16mm
|
Upper Plate Thickness: 16mm
|
|
Middle Plate Thickness: 6mm
|
Middle Plate Thickness: 10mm
|
Middle Plate Thickness: 10mm
|
|
Lower Plate Thickness: 14mm
|
Lower Plate Thickness: 18mm
|
Lower Plate Thickness: 18mm
|
|
Height: 500mm
|
Height: 500mm
|
Height: 500mm
|
|
Platform Thickness: 2.5mm
|
Platform Thickness: 3mm
|
Platform Thickness: 3mm
|
|
Product Dimension
|
||
|
L 7000mm*W 2500mm*H 1570mm
|
L 12400mm*W 2500mm*H 1570mm
|
L 13950mm*W 2500mm*H 1600mm
|
|
Axles
|
||
|
2/3 Axles *13/16 Ton
CHENLU/FUWA/BPW/Othe
|
2/3 Axles *13/16 Ton
CHENLU/FUWA/BPW/Other
|
3 Axles *13/16 Ton
CHENLU/FUWA/BPW/Other
|
|
Tire
|
||
|
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/
Other Brand
|
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/
Other Brand
|
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/
Other Brand
|
|
Rim
|
||
|
9.00*22.5 (8/12 Pieces) Steel/Aluminum
|
9.00*22.5 (8/12 Pieces) Steel/Aluminum
|
9.00*22.5 (8/12 Pieces) Steel/Aluminum
|
|
Leaf Spring
|
||
|
90mm*13mm*10/90mm*16mm*10Pcs
|
90mm*13mm*10/90mm*16mm*10Pcs
|
90mm*13mm*10/90mm*16mm*10Pcs
|
|
King Pin
|
||
|
50#(2″)/90#(3.5″) JOST/Other Brand
|
50#(2″)/90#(3.5″) JOST/Other Brand
|
50#(2″)/90#(3.5″) JOST/Other Brand
|
|
Landing Gear
|
||
|
28 Ton Two Speed,JOST/Other Brand
|
28 Ton Two Speed,JOST/Other Brand
|
28 Ton Two Speed,JOST/Other Brand
|
|
Twist Lock
|
||
|
4 Sets
|
12 Sets
|
12 Sets
|
|
Vehicle Painting
|
||
|
Electrophoresis painting
|
Electrophoresis painting
|
Electrophoresis painting
|
Various parts such as braka companonts, bearings and tires are sciactad tom brands that ars widely ovallable in g obal maricts. CHENU pravaes pperaton guides, maintenanoe advioe and spare parts sclutions to support the long term use of your container and bulk cargo tra ilers.

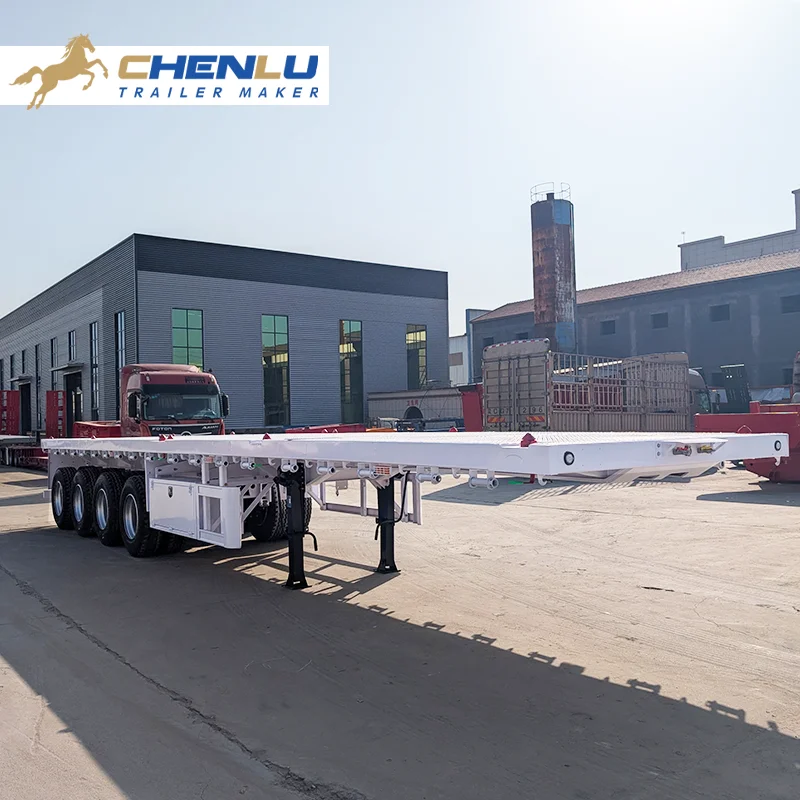

Engineered for heavy duty logistics, this versatile flatbed semi trailer features a high tensile steel chassis and a multi axle configuration to ensure superior payload capacity. Its expansive platform maximizes cargo volume, providing a reliable and versatile solution for transporting both containers and oversized freight across the most demanding terrains
This flatbed trailer is engineered to streamline your logistics. The low profile deck simplifies loading and unloading. Featuring an expansive cargo platform and optimized axle distribution, it maximizes payload capacity per trip minimizing total journeys and delivering unparalleled transportation efficiency
Constructed with premium high tensile steel, this flatbed trailer ensures exceptional durability for long term heavy duty operations. Its optimized frame architecture and superior quality components guarantee stable performance across the most challenging environments. this versatile transport solution minimizes maintenance costs and significantly extends the service life
CHENLU flatbed, lowbed, dump and sidewall semi trailers use high strength structural steel and optimized frame geometry. Critical stress areas are reinforced to handle frequent loading cycles and challenging road conditions.This helps extend trailer service life and reduce unexpected downtime.
We offer fully customized services to address the unique requirements of our customers, ensuring every product delivers outstanding performance and reliability.
